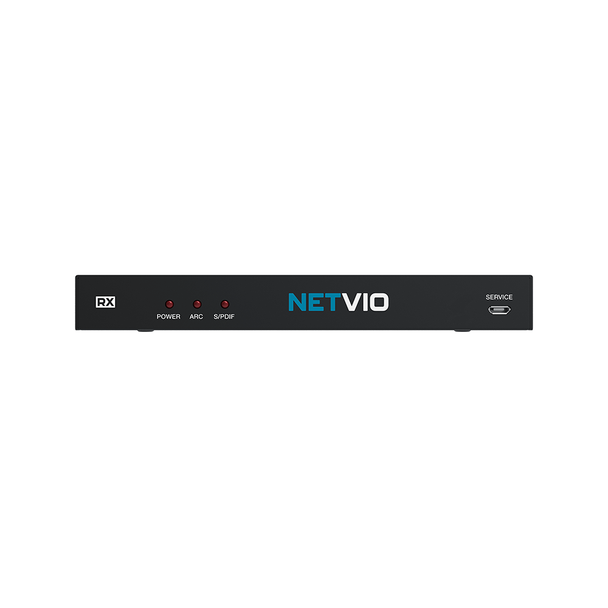

Netvio NET-RX-HT2-40-70-10 HDBaseT PoC Receiver (RX) with ARC, 2-Way IR, & RS-232- 4K/60 HDR, 1080P

Netvio, a professional AV company, provides a fresh and creditable brand alternative with a different perspective towards product integration, hardware and software. Netvio aims to redefine and expand video product functionality beyond traditional standards whilst also providing the best overall value and user experiences.

The NET-RX-HT2-70-10 4K/60 HDR HDBaseT Receiver with Ethernet over single category cable from Netvio is capable of sending the latest bandwidth heavy sources over 70m when connected to a compatible matrix device. Featuring ARC, 2 way IR and RS-232, this receiver comes complete with all required accessories to fully maximise product features and functionality.

As the receiver is powered from the Netvio matrix device over the category cable, a local power supply is simply not required.

Offering the latest 4K media 4K/60 HDR using Cat5e/6 with 70m support, if bandwidth exceeds HDBaseT 10.2Gbps limits, then light compression is added. This receiver supports 100BaseT Ethernet when connected to compatible Netvio matrix and output port. The 2 way IR allows control of centralised media while providing an additional path way to send IR signals from the matrix to the display.

RS-232 provides secure hardwired bi-directional serial control between source and display. The NET-RX-HT2-70-10 comes complete with 3 pin screw type connectors for ease of installation. Direct zoned connectivity results in a simple pass through from control source, to matrix, then onto receivers. The NET-RX-HT2-70-10 features onboard support for routed RS-232.

This receiver supports ARC from embedded HDMI signal or S/PDIF connection. Audio return provides the best possible digital audio experience from popular embedded display applications. Capture, route and connect to audio systems using analogue and digital outputs. The connection choice is determined by the display capability. Use the HDMI-ARC designated display input if available.

This product is designed to run over unshielded twisted pair Cat5e/6/7 cable.

Please Note: Netvio recommend the use of Netvio approved IR accessories to ensure guaranteed performance and compatibility. In perfect conditions, IR performance is rated at 8m from display to remote control, but this will vary in differing light conditions. It may be necessary to adjust both the capture, sender device positions to achieve best performance, ensuring that remote batteries are in good condition.

Features

- 4K/60 HDR HDBaseT receiver over single category cable
- Capable of sending the latest bandwidth heavy sources over 70m when connected to a compatible matrix device
- If bandwidth exceeds HDBaseT 10.2Gbps limits, then light compression is added
- HDBaseT provides useful troubling shooting status indicators showing status of connection and source content
- Supports 100BaseT Ethernet when connected to compatible Netvio matrix and output port
- Comes complete with all required accessories to fully maximise product features and functionality
- RS-232 Secure hardwired bi-directional serial control between source and display
- This receiver comes complete with 3 pin screw type connectors for ease of installation
- Onboard support for routed RS-232
- Supports ARC from embedded HDMI signal or S/PDIF connection
- Audio return provides the best possible digital audio experience from popular embedded display applications
- Powered from the Netvio matrix device over the category cable, a local power supply is simply not required
- Cost effective SafeGuard enhanced product protection for up to 10 years for 10% additional cost
- For compatible matrix Switcher, please refer to the related items section below.

Technical Specifications

- Encoding Data Rate HDBaseT max 10.2Gbs subject to variable stream compression and up conversion
- Max Video Transmission 3840 x 2160 60fps 4:4:4 8b
- HDBaseT HDBaseT 10.2Gb @ 700m 4K/60 HDR, 100m /1080p
- Supports CEC, DDC, 100BaseT Ethernet, RS-232 TXD, RXD and Infrared
- HDMI Supporting HDMI 2.0b resolutions including 3840 x 2160 60fps HDR
- CEC, DDC
- Max Pixel Clock 600MHz / 600Mcsc
- HDR Compatibility HDR10, HDR10+, Hybrid Log-Gamma, Dolby® Vision
- HDCP Inclusive up to 2.2
- Audio Formats LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, Dolby® Digital Plus, Dolby® TrueHD, DTS, DTS Master
- Audio Return Channel (ARC) ARC capture from embedded HDMI subject to display capability
- One (RX) S/PDIF display audio input (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket
- RS-232 Direct RS-232 Serial interface, 3 pin, via Phoenix style, 3.5mm pitch male receptacle
- IR Bi directional Infrared, TX > RX, RX > TX via 3.5mm jack socket. Please refer to the wiring schematic within the additional information section on the Download tab
- LAN 1x IEEE 802.3u 100BaseT Ethernet interface via RJ45 socket
- Power Supply 24V power over cable (PoC), provided by compatible matrix (For details of compatible matrix units, please refer to the related items section)
- Safety Approvals CE, UKCA, FCC, RoSH

Dimensions
- Height: 20mm / 0.79"
- Width: 165mm / 6.50"
- Depth: 88mm / 3.46"
- Weight: 350g
- Warranty 2 year standard warranty
- 3 year standard warranty (subject to online registration)
- 5 year SafeGuard - 5% product value
- 10 year SafeGuard - 10% product value

In The Box
- Mounting brackets
- IR accessories
- Phoenix connectors

Compatible Matrix Switch Items
- NET-MX-HT2-0404-10
- NET-MX-HT2-0806-10
- NET-MX-HT2-0808-10
