PulseEight Neo X Full 4K 8x10 Video and Audio Matrix

First-ever video and audio matrix from PulseEight that features 8 HDMI inputs and outputs. Extends 4K UHD up to 100ms and 1080p up to 150ms.

Product Description:

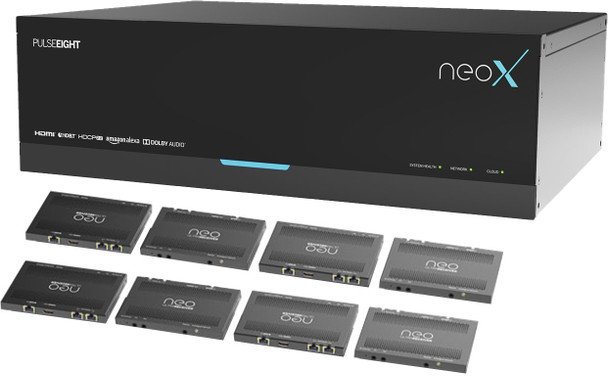

PulseEight Neo X Full 4K 8x10 Video and Audio Matrix is the very first video and audio matrix that features eight HDMI inputs, eight HDBaseT outputs as well as two HDMI outputs. Using just one Cat5e/6/7 cable, extend 4K UHD up to 100ms and 1080p up to 150ms.

Efficient Control:

The Neo X lets you control all of your devices with one single TV remote, PulseEights libCEX technology allows you access to each one of your input devices from the remote controllers' source button, simply select your chosen input and Neo:X matrix will route the video automatically.

Contextual IR:

The PulseEight Neo X matrix utilises Contextual IR to reduce the number of buttons to 8 - one for each input. This results in a much more seamless experience.

Remote Monitoring:

The matrix is able to provide content video by being connected to PulseEights cloud management service, your system will show if this is functioning via the LED at the front of the matrix. If you encounter an issue, users can log into PulseEights cloud portal where you can access diagnostic information, you can even have the system fixed remotely free of charge.

Easy to Use with your Favourite Devices
The matrix has versatile accessibility, compatible with smart-device including your smartphone, tablet or PC. Compatible with any browser.

Amazon Voice Control Compatible
Control the matrix with ease using voice control VIA Alexa, letting you control your TV simply by using voice commands.

Key Features:

- Ultra HD 4K Video Transmission (upto 600Mhz), 1080p, 3D
- Full HDCP 2.2 Support
- 8x HDMI Inputs
- 8x HDBaseT Class C + DSC Outputs
- 2x HDMI Outputs
- 8x neo:Ultra PoH Receivers Included
- Audio Return Channel
- Audio Breakout of input sources
- HDMI-CEC Bi-Directional Control
- Alexa Compatible
- Bi-Directional IR Control
- Responsive Web Interface
- Automatic EDID Management
- 3 year standard warranty
- Made In Britain

Tech Specs
- Input Type(S) Hdmi
- Output Type(S) Hdbaset, Hdmi Stereo L/r, Optical Audio, Digital Coax Audio

Connectivity
- Hdmi Inputs 8
- Video Input Zones 8
- Audio Input Zones 0
- Stereo L/r Inputs 0
- Optical Audio Inputs 0
- Digital Coax Audio Inputs 0
- Video Output Zones 10
- Audio Output Zones 10
- Hdbaset Outputs 8x Hdbaset Class C + Dsc
- Hdmi Outputs 2
- Stereo L/r Outputs 10
- Optical Audio Outputs 10
- Digital Coax Audio Outputs 10
- 12v Triggers 0
- Hdcp Hdcp Hdcp 2.2
- Power Inlet Iec C14 Inlet - 100-240v 4.0/2.0a 50/60hz

Special Features
- Ethernet Pass-through Yes
- Lip Sync Delay Up To 340ms Per Zone
- Volume Adjustments 20db To +20db 0.5db Steps
- Dsc (Display Stream Compression) Yes
- Arc (Audio Return Channel) Yes
- Poh (Power Over Hdbaset) Yes - 8x Poh Receivers Included
- Remote Monitoring Real-time Remote Monitoring Portal

Control
- Hdmi-cec Yes
- Ip Control Set Top Box Ip Control
- Serial Control No
- Ir Control Bi-directional
- Contextual Ir Routing Yes
- Programmable Ir Yes
- Voice Control Yes - Alexa Skill
- Web Interface / Android App Yes

Dimensions And Weight
- Depth 31.6cm /12.4 Inches
- Height 13.2 Cm / 5.2 Inches (3u)
- Width 44 Cm / 17.3 Inches
- Weight 4.83 Kg / 2.2 Lb (Matrix)

Picture (Processing)
- Maximum Pixel Clock 600mhz
- Maximum Bandwidth 18gbps
- Supported Video Formats 4k/60hz 4:4:4, 4k/60hz 4:2:2, 4k@60hz 4:2:0, Hdr10@60hz, Hdr10@24hz, 720p, 1080i, 1080p (+3d)
- Max Video Resolution 4k/60hz 4:4:4

Regulatory
- Power Consumption Max 2amps @ 240v
- Operating Temperature 0 To +35°c (32 To +95°f
- Storage Temperature -4°f To 140°f (-20°c To 60°c)
- Safety & Emission Ce, Fcc, Rohs

neo:X+ & ProAmp8 Concept Wiring Diagram

Video Matrix Comparison Chart

neo:X+ & ProAudio Concept Wiring Diagram

neo:X+ Concept Wiring Diagram

neo:X+, ProAudio & ProAmp8 Concept Wiring Diagram
