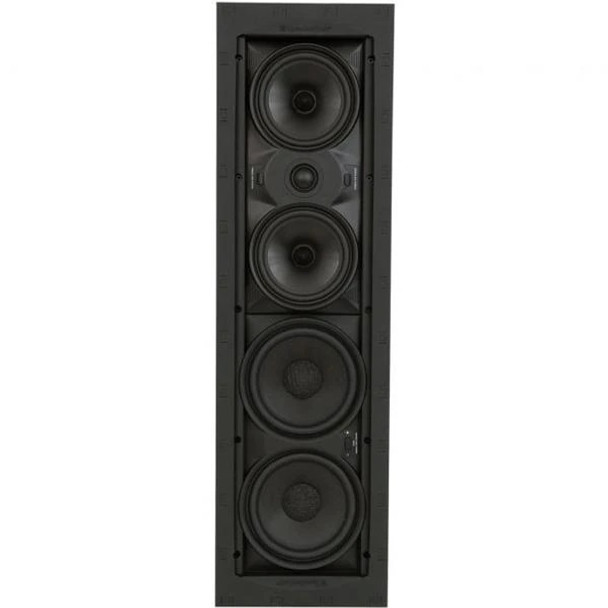

SpeakerCraft Profile AIM CINEMA ONE In Wall Speaker (Each)

SpeakerCraft PROFILE AIM CINEMA ONE | ASM59101

Profile AIM Cinema One

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.

Features

- Pivoting 25mm Silk Dome Tweeter
- Two 131mm Injection Moulded Graphite Cone Bass Drivers with Phase Plugs
- Two 150mm Kevlar Impregnated Paper Cone Bass Drivers
- Front-Mounted Bass Adjustment Switch
- Bi-Amping Feature
- Timbre-Matched to All One Series Speakers

General Information

Enclosure Type: Open
Fire Rating: Unspecified
Guarantee Period (Months): Lifetime
Output: Mono
Power Type: Passive

Appearance

Visible Shape: Rectangular

Dimensions

Cutout Dimensions(mm): 730 x 191
Mounting Depth (mm): 102
Overall Depth (mm): 102
Overall Dimensions (mm): 768x229

Detailed Specifications

Frequency range (Hz): 40 - 20000
Impedance (Ohms): 8 - 8
Sensitivity (dB): 89

Driver Information

Bass: 2
Biggest Driver Size (mm): 133
Mid: 2
Tweeter: 1
