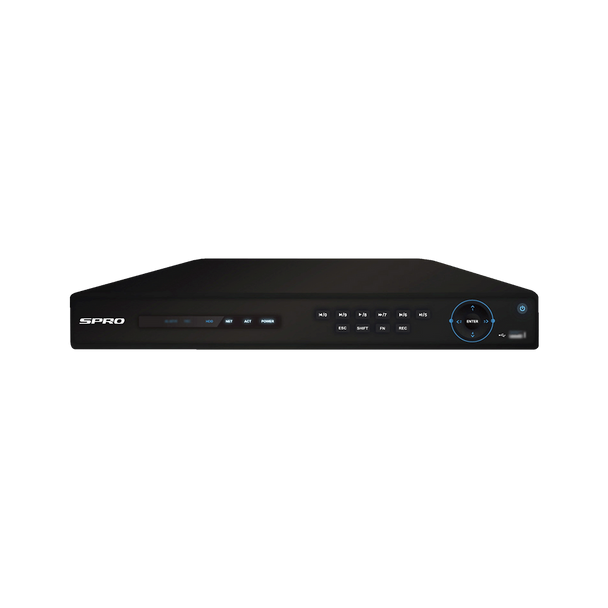

SPRO DHIPNVR16-A3 4K 16 Channel 12MP IP NVR

Description

The SPRO NVR 4K SERIES is a powerful network video recorder.

With a 12MP resolution capacity, it offers high-quality video recording and playback, ensuring you capture detailed footage.

This NVR model is equipped with advanced features to bolster your surveillance system's capabilities and security.

Its robust performance and reliability make it an ideal choice for comprehensive video surveillance solutions.

Operating System Embedded LINUX

Specifications:

Model Number: DHIPNVR16-4K-V3
Operating System: Embedded LINUX

Audio and Video

IP Camera Input: 16 Channel
Two-way Talk: 1 Channel Input, 1 Channel Output, RCA

Display

Interface: 1 HDMI, 1 VGA
Resolution-HDMI: 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Resolution-VGA: 1920×1080, 1280×1024, 1280×720, 1024×768
Decoding Capability: 4-ch@8MP(30fps), 16-ch@1080P(30fps)
Multi-screen Display: 16CH: 1/4/8/9/16
OSD: Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Bit Rate: 16Kbps ~ 20Mbps Per Channel
Record Mode: Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP,
Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input: 4 Channel
Relay Output: 2 Channel

Playback & Backup

Sync Playback: 1/4/9/16
Search Mode: Time/Date, Alarm, MD & Exact search (accurate to second)
Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,
Next camera, Previous camera, Full screen, Backup selection, Digital zoom
Backup Mode: USB Device/ Network

Third-party Support

Third-party Support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,
Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony,
Videotec, and more.

Network

Interface: 1 RJ-45 port (10/ 100/ 1000Mbps)
PoE: 16 ports (IEEE802.3af/at)
1-8 ports support ePoE & EoC
Network Functions: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.), Easy4IP
Max. User Access: 128 users
Smart Phone: iPhone, iPad & Android
Interoperability: ONVIF 2.4, SDK, CGI

Storage

Internal HDD: 2 SATA III Ports, up to 10TB capacity for each HDD
eSATA: N/A

Auxiliary Interface

USB: 2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
RS485: 1 Port, for PTZ control
RS232: 1 Port, for PC Communication and Keyboard

Electrical

Power Supply: Single, AC 100~240V, 50/60 Hz
Power Consumption-NVR: <15.2W (Without HDD)
Power Consumption-PoE: Max 25.5W for single port 130W total rated power, 80% control for protection
Fan: Smart fan, automatically adjust running speed

Environmental

Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions: 1U, 375mm× 326.5mm× 53mm (14.8" x 12.9" x 2.1")
Net Weight: 2.7kg (6.0 lb) (without HDD)
Gross Weight: 4kg(8.8 lb) (without HDD)
