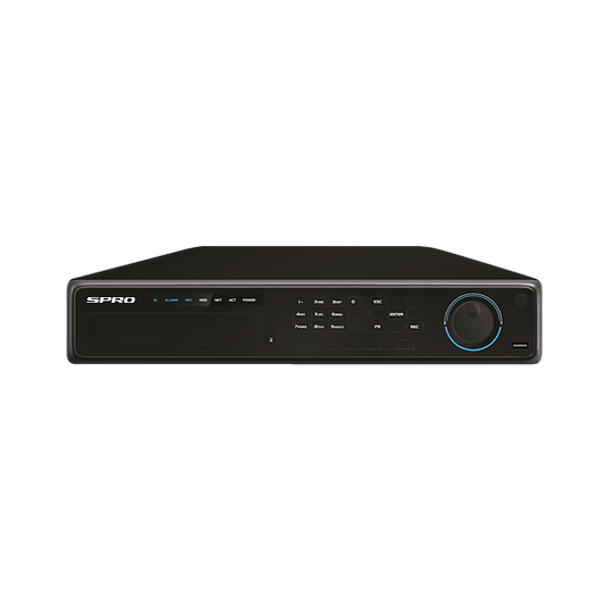

SPRO DHIPNVR32-4K V3 4K 32 Channel 12MP IP NVR

Description

The SPRO NVR 4K SERIES 12MP IP NVR is a powerful network video recorder.

With a 12MP resolution capacity, it offers high-quality video recording and playback, ensuring you capture detailed footage.

This NVR model is equipped with advanced features to bolster your surveillance system's capabilities and security.

Its robust performance and reliability make it an ideal choice for comprehensive video surveillance solutions.

Operating System Embedded LINUX

Display

Interface: 2 HDMI, 2 VGA
Resolution: 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display: 1st screen: 1/ 4/ 8/ 9/ 16/ 25/ 36 - 2nd screen: 1/ 4/ 8/ 9/ 16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input: 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output: 6 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event: N/A

Playback & Backup

Sync Playback: 1/4/9/16
Search Mode: Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode: USB Device/ Network/ Internal SATA burner/ eSATA Device

Storage

Internal HDD: 4 SATA III Ports, up to 10TB capacity for each HDD
HDD Mode: Single, Raid 0/ 1/ 5/ 6/ 10
eSATA: 1 eSATA port

Auxiliary Interface

Front Cover: N/A
USB: 4 ports (2 Rear USB3.0, 2 Front USB2.0)
RS232: 1 Port, for PC Communication and Keyboard
RS485: 1 Port, for PTZ Control

Third-party Support

Third-party Support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more.

Audio and Video

IP Camera Input: 32 channel
Two-way Talk: 1 Channel Input, 1 Channel Output, RCA

Intelligence

Intelligent Functions: Tripwire, Intrusion, Face detection, Object Abandoned/Missing

Recording

Compression: H.265/ H.264/ MJPEG
Resolution: 12Mp/ 8Mp/ 6Mp/ 5Mp/ 4Mp/ 3Mp/ 1080P/ 720P/ D1&etc.
Record Rate: 320Mbps
Bit Rate: 16Kbps ~ 20Mbps Per Channel
Record Mode: Manual, Schedule (Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec,
Post-record: 10~300 sec

Network

Interface: 1 RJ-45 port (10/ 100/ 1000Mbps)
PoE: 16 ports (IEEE802.3af/at)
1-8 ports support ePoE
Network Functions: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
Max. User Access: 128 users
Smart Phone: iPhone, iPad & Android
Interoperability: ONVIF 2.4, CGI Conformant

Electrical

Power Supply: Single, AC 100~240V, 50/60 Hz
Power Consumption: NVR: <20W (without HDD)

Environmental

Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions: 2U, 440mm × 450.1mm × 95mm (17.3" x 17.7" x 3.7")
Net Weight: 7kg (15.4 lb) (without HDD)
Gross Weight: 9.5kg (20.94 lb)
