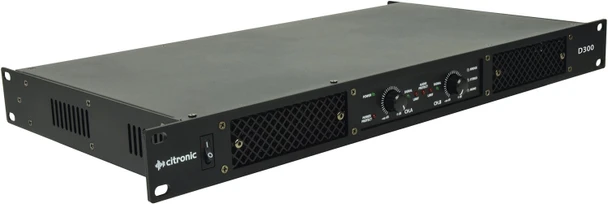

Citronic D-Series Class-D Power Amplifier 2×150W RMS Professional PA 1U Rack

Citronic D-Series Class-D Power Amplifier 2×150W

The Citronic D-Series Class-D Power Amplifier is a compact and lightweight stereo amplifier designed for professional sound reinforcement. Its efficient Class-D architecture, 1U rack-mountable format, switchable operating modes and 75Hz low-cut filter provide flexible configuration for a wide range of PA applications.

Key Features

2 × 150W RMS @ 4Ω
2 × 75W RMS @ 8Ω
300W Bridge @ 8Ω
Class-D amplification
Compact and lightweight 1U rack format
Switchable Stereo, Parallel Mono and Bridge Mono modes
Switchable 75Hz low-cut filter
Selectable input sensitivity: 0.775V / 1.0V / 1.44V
Built-in limiter for speaker protection
Cool Guide technology for efficient operation
XLR inputs with parallel XLR outputs
SPK speaker outputs

Technical Specifications

Specification Details
Output @ 4Ω 2 × 150W RMS
Output @ 8Ω 2 × 75W RMS
Bridge @ 8Ω 1 × 300W
Amplifier Type Class-D
Modes Stereo, Parallel Mono, Bridge Mono
Low-Cut Filter 75Hz Switchable
Input Sensitivity 0.775V / 1.0V / 1.44V Switchable
Inputs L+R XLR Female
Through Outputs L+R XLR Male
Speaker Outputs L+R SPK Connectors (+1 for Bridge)
Power Supply 220–240Vac, 50/60Hz IEC
Fuse T6.3A (20 × 5mm)
Dimensions 482 × 245 × 44mm
Rack Size 1U
Weight 3.50kg

Ideal For

Professional PA systems
Live sound and events
Small to medium speaker systems
Mobile sound setups
Clubs and entertainment venues
Commercial audio installations
