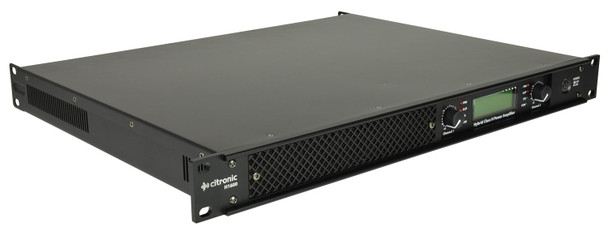

Citronic Hybrid Class-H Power Amplifier 2×800W @ 2Ω 1U Professional PA

Citronic Hybrid Class-H Power Amplifier 2×800W @ 2Ω – 1U

The Citronic Hybrid Class-H Power Amplifier combines a digitally controlled power section with a professional Class-H output stage, delivering high power and efficient performance in a compact 1U rack-mountable format.

Designed for medium to large sound reinforcement systems, it features a switchable 120Hz low-pass filter, LCD status display, selectable input sensitivity and Stereo, Parallel or Bridge operating modes. Comprehensive thermal, overload and circuit protection provides dependable operation in demanding professional PA applications.

Key Features

2 × 800W RMS @ 2Ω (40ms burst, 1kHz sine)
2 × 650W RMS @ 4Ω
2 × 450W RMS @ 8Ω
1600W RMS Bridge @ 4Ω
1200W RMS Bridge @ 8Ω
Hybrid Class-H circuit design
Digitally controlled and monitored power section
Stable down to 2Ω
Switchable 120Hz low-pass crossover
Backlit LCD status display
Stereo, Parallel and Bridge modes
Fully balanced signal path
Selectable input sensitivity
Comprehensive internal protection

Technical Specifications

Specification Details
Power @ 2Ω 2 × 800W RMS
Power @ 4Ω 2 × 650W RMS
Power @ 8Ω 2 × 450W RMS
Bridge @ 4Ω 1600W RMS
Bridge @ 8Ω 1200W RMS
Amplifier Construction Hybrid Class-H
Crossover Full Range / Fixed 120Hz LPF
Input Sensitivity 1.0V / 1.4V / 2.0V Switchable
Input Impedance 20KΩ Balanced / 10KΩ Unbalanced
Frequency Response 20Hz–20kHz ±0.5dB
THD+N 0.2%
SNR -95dB
Damping Factor >700
Protection Short/Open Circuit, Thermal, RF, DC Fault, On/Off Mute, Active Inrush
Power Supply 200–240Vac, 50Hz IEC
Fuse T6AL 250V
Dimensions 483 × 361 × 44mm
Rack Size 1U
Weight 6.8kg

Ideal For

Professional PA systems
Medium to large sound reinforcement
Live events and performances
Sound contractors and PA installers
Clubs and entertainment venues
Subwoofer and full-range speaker systems
