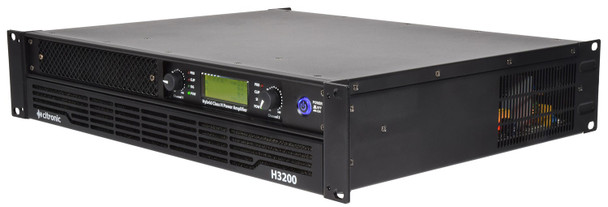

Citronic Hybrid Class-H Power Amplifier 2×1600W @ 2Ω 2U Professional PA

Citronic Hybrid Class-H Power Amplifier 2×1600W @ 2Ω – 2U

The Citronic Hybrid Class-H Power Amplifier combines a digitally controlled power section with a professional Class-H output stage, delivering high-power performance for medium to large sound reinforcement systems.

Featuring 2 × 1600W RMS @ 2Ω, a switchable 120Hz low-pass filter, backlit LCD status display and flexible Stereo, Parallel and Bridge modes, this amplifier provides a versatile solution for professional PA applications. Comprehensive internal protection helps ensure dependable operation under demanding conditions.

Key Features

2 × 1000W RMS @ 2Ω (40ms burst, 1kHz sine)
2 × 1200W RMS @ 4Ω
2 × 800W RMS @ 8Ω
3200W RMS Bridge @ 4Ω
2400W RMS Bridge @ 8Ω
Hybrid Class-H circuit design
Digitally controlled and monitored power section
Stable down to 2Ω
Switchable 120Hz low-pass crossover
Backlit LCD status display
Stereo, Parallel and Bridge modes
Fully balanced signal path
3 selectable input sensitivity levels
Full thermal and overload protection

Technical Specifications

Specification Details
Power @ 2Ω 2 × 1600W RMS
Power @ 4Ω 2 × 1200W RMS
Power @ 8Ω 2 × 800W RMS
Bridge @ 4Ω 3200W RMS
Bridge @ 8Ω 2400W RMS
Amplifier Construction Hybrid Class-H
Crossover Full Range / Fixed 120Hz LPF
Input Sensitivity 1.0V / 1.4V / 2.0V Switchable
Input Impedance 20KΩ Balanced / 10KΩ Unbalanced
Frequency Response 20Hz–20kHz ±0.5dB
THD+N 0.2%
SNR -95dB
Damping Factor >700
Protection Short/Open Circuit, Thermal, RF, DC Fault, On/Off Mute, Active Inrush
Power Supply 200–240Vac, 50Hz IEC
Fuse T10AL 250V
Dimensions 483 × 361 × 88mm
Rack Size 2U
Weight 8.9kg

Ideal For

Professional PA systems
Medium to large sound reinforcement
Live events and performances
Sound contractors and PA installers
Clubs and entertainment venues
High-power full-range and subwoofer systems
